Checking Fixtures

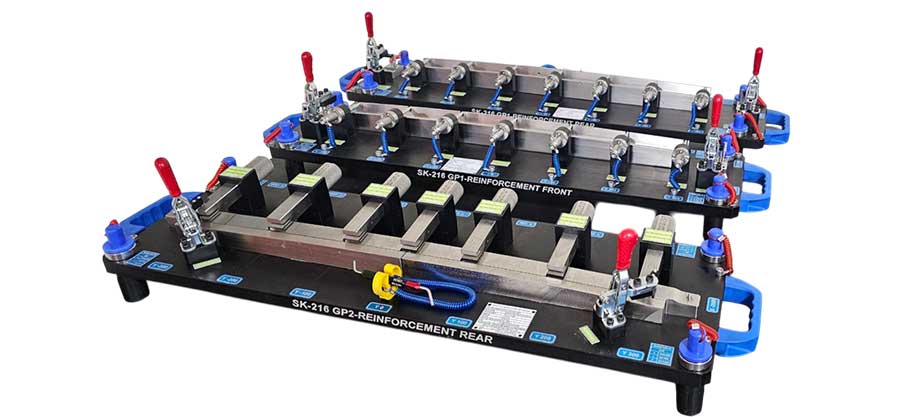

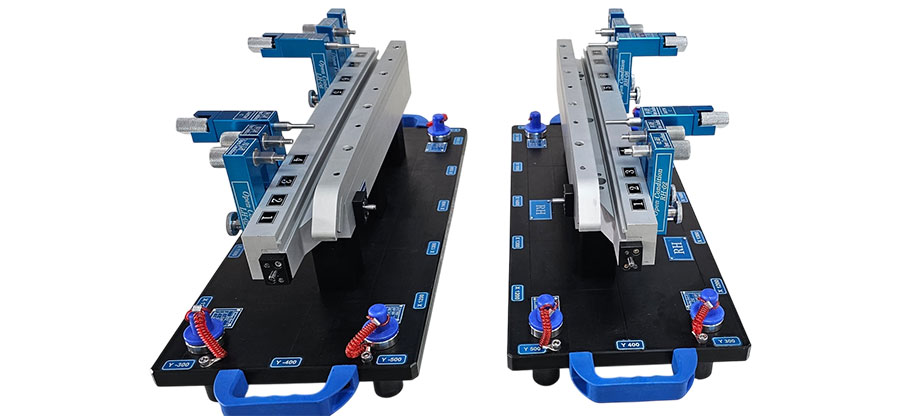

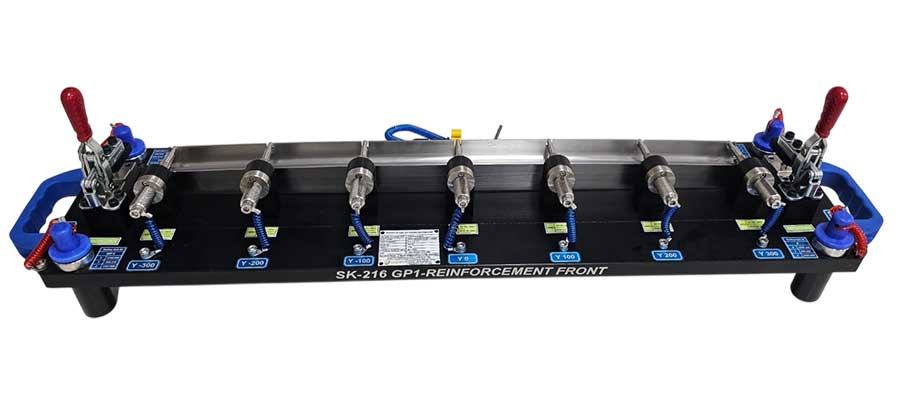

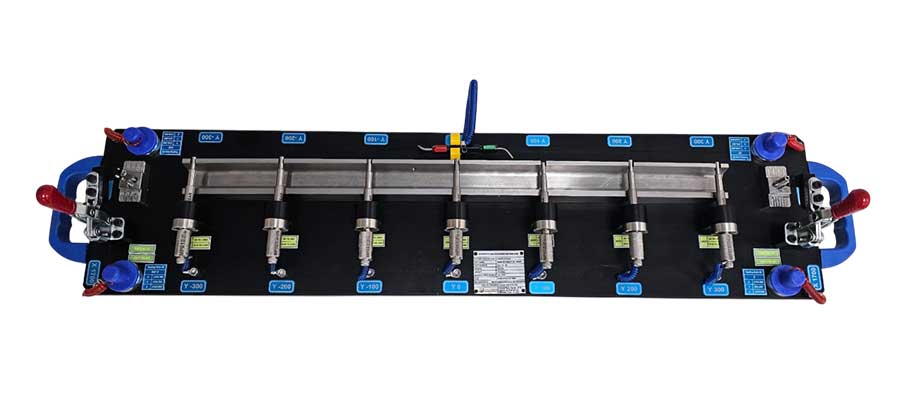

Checking fixtures are precision tools used in manufacturing to verify the accuracy and quality of components or assemblies during production. They are designed to hold a part in a fixed position while measurements are taken to ensure it meets specific design specifications. Checking fixtures help ensure that parts are correctly aligned, dimensionally accurate, and free from defects, thus reducing the chances of errors that could affect the final product's performance. Typically made from durable materials like steel or aluminum, checking fixtures are custom-built to accommodate the unique shapes and sizes of parts being inspected. These fixtures are used in various industries, including automotive, aerospace, and electronics, where precision is critical. By enabling accurate checks during production, checking fixtures help improve efficiency, reduce waste, and maintain consistent product quality. They are integral to quality control processes, ensuring that only parts meeting exact standards are used in the final assembly, ultimately leading to superior end products and minimized production costs.
